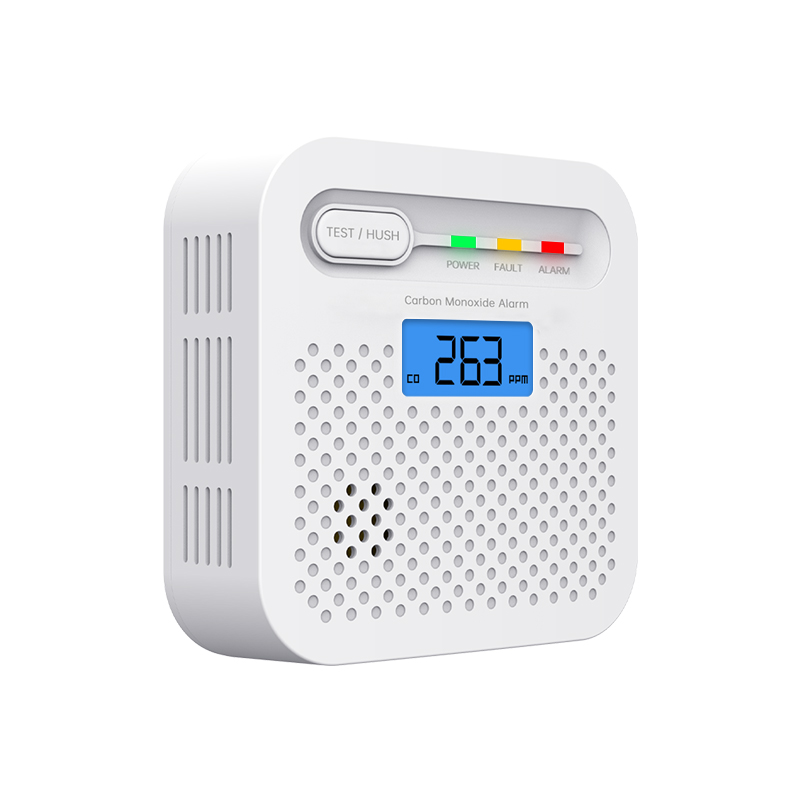

Product Introduction
Carbon Monoxide Alarm (CO alarm), use of high-quality electrochemical sensors, combined with advanced electronic technology and sophisticated technology made of a stable work, long life, and other advantages; it can be placed on the ceiling or wall mount and other installation methods, simple installation, easy to use.
Where carbon monoxide gas is present, once the concentration of carbon monoxide gas reaches the alarm setting value, the alarm will emit an audible and visual alarm signal to remind you to quickly take effective measures to effectively avoid the occurrence of fire, explosion, suffocation, death, and other malignancies.
Key Specifications
| Product name | Carbon Monoxide Alarm |
| Model | Y100A-CR |
| CO Alarm Response Time | >50 PPM: 60-90 Minutes |
| >100 PPM: 10-40 Minutes | |
| >300 PPM: 0-3 Minutes | |

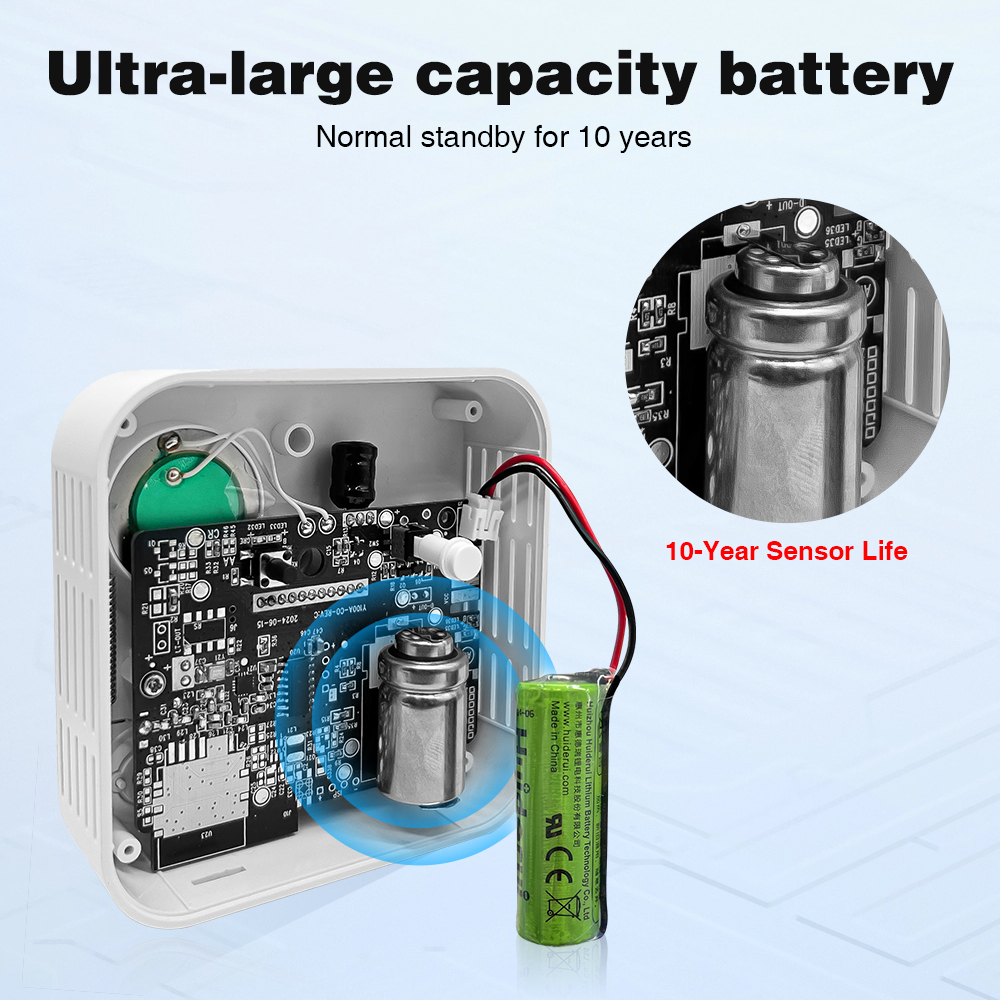

| Supply voltage | CR123A 3V |
| Battery capacity | 1500mAh |
| Battery low voltage | <2.6V |
| Standby current | ≤20uA |
| Alarm current | ≤50mA |
| Standard | EN50291-1:2018 |
| Gas detected | Carbon Monoxide (CO) |
| Operating environment | -10°C ~ 55°C |
| Relative humidity | <95%RH No condensing |
| Atmospheric pressure | 86kPa ~ 106kPa (Indoor use type) |
| Sampling Method | Natural diffusion |
| Method | Sound, Lighting alarm |
| Alarm volume | ≥85dB (3m) |
| Sensors | Electrochemical sensor |
| Max lifetime | 10 years |
| Weight | <145g |
| Size (LWH) | 86*86*32.5mm |
