S100C-AA-W(433/868) – Interconnected Smoke Alarm

Summarized Features:

What we provide？ – Wholesale price，OEM ODM service，Product training ect.

Get a Free Quotation Sample Request

Product Highlights

Product Introduction

The RF Wireless Interconnected Smoke Detector combines advanced technology with practical design to offer reliable fire safety across various settings. Built with a high-sensitivity infrared photoelectric sensor, a robust microcontroller unit (MCU), and precise SMT chip processing, this wireless interlinked smoke alarm provides dependable smoke detection with low power consumption, excellent stability, and strong durability. Its user-friendly and visually appealing design makes it ideal for use in homes, factories, stores, machine rooms, warehouses, and other environments requiring effective smoke monitoring.

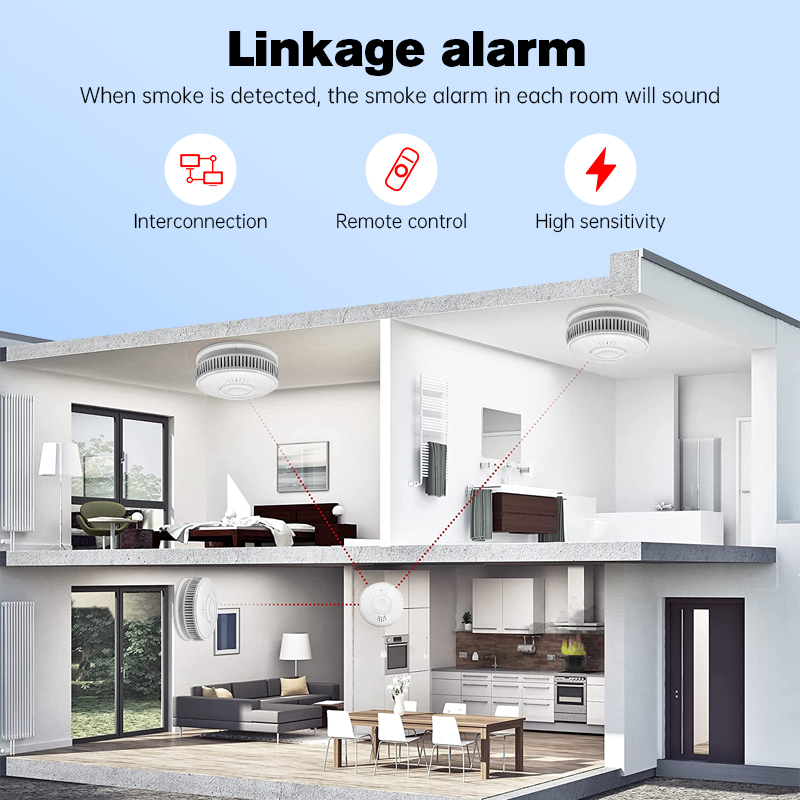

This interconnected smoke detector is part of a wireless system, meaning all connected alarms activate simultaneously if smoke is detected, ensuring immediate and comprehensive alert coverage throughout the building. This synchronized alert system enhances safety by offering real-time response and whole-building awareness.

Key Specifications

Model	S100C-AA-W(RF 433/868)
Decibel	>85dB (3m)
Working voltage	DC3V
Static current	<25μA
Alarm current	<150mA
Low battery	2.6V ± 0.1V
Relative Humidity	<95%RH (40°C ± 2°C Non-condensing)
Indicator light failure impact	The failure of the two indicator lights does not affect the normal use of the alarm
Alarm LED light	Red
RF Wireless LED Light	Green
Output form	Audible and Visual alarm
RF mode	FSK
RF frequency	433.92MHz / 868.4MHz
Silent time	About 15 minutes
RF Distance (Open sky)	<100 meters
RF Distance (Indoor)	<50 meters (according to the environment)
Battery life	About 3 years (may vary depending on usage)

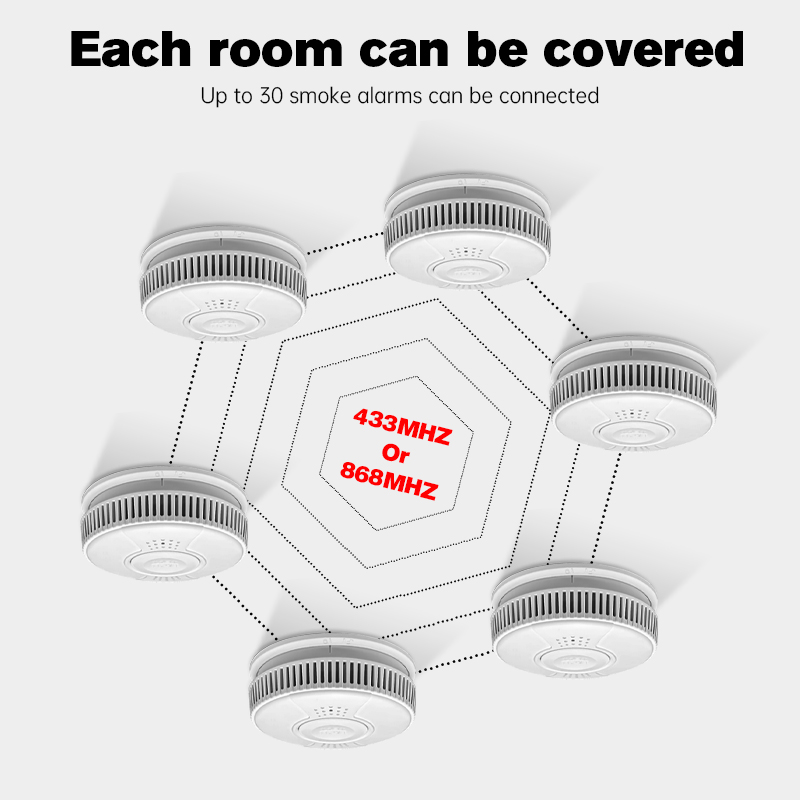

RF wireless device support	Up to 30 pieces
Standard	EN 14604:2005, EN 14604:2005/AC:2008

Battery replacement

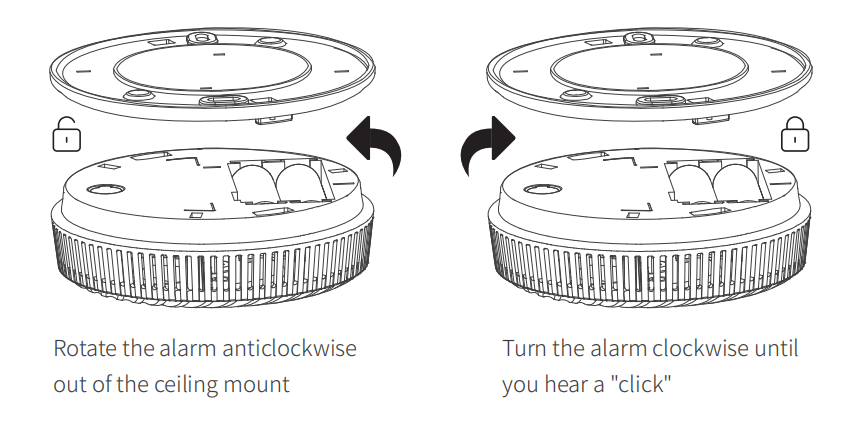

1. Turn the alarm counterclockwise from the ceiling mount and remove the battery

(Refer to the installation instructions).

2. Press the button 3-5times to make the alarm release the residual power, so as to

avoid low battery fault alarm.

3. Users can purchase 2 alkaline AA LR6 1.5V batteries by themselves. Recommended

battery brands: PAIRDEER/NECTIUM/PKCELL.

4. Install 2pcs new AA batteries in the correct direction.

5. Press the Test/Hush button to test whether the alarm can emit sound and the LED

light up. If it is working, the alarm is normal.

6. Turn the alarm clockwise and press the Test/Hush button again. Alarm should emit

sound and LED light (refer to the installation instructions).

1.Can the functions of the smoke detector be customized?

Yes, we can adjust the functionality of the smoke detectors based on your needs. For example, you can choose different communication protocols (such as Zigbee, WiFi, NB-IoT), add specific alarm sounds, or integrate additional sensors.

2.How do I start the customization process for a smoke detector?

You can contact our sales team with your specific requirements. Our team will discuss your custom needs, provide advice, and send you a quote based on your project.

email: alisa@airuize.com

3.What is the minimum order quantity (MOQ) for customized smoke detectors??

The MOQ for customized smoke detectors depends on the product type and customization requirements. Typically, the MOQ is 1000 units, but we can discuss specific needs for smaller quantities on a case-by-case basis.

4.Can the packaging for the smoke detectors be customized??

Yes, we offer customized packaging options, including boxes, manuals, stickers, and other branding materials. Please let us know your packaging requirements.

5.Are the alarms compliant with safety standards?

Yes, the alarms comply with EN 14604:2005 and EN 14604:2005/AC:2008 certifications.

6.Do I get a discount for large volume custom orders?

Yes, we offer discounts for large volume custom orders. The exact discount depends on the order quantity. Please contact our sales team for more details.

7.Are these alarms suitable for homes and businesses?

These alarms are ideal for home use with easy installation and reliable interconnection. For commercial use, additional control panels and smoke alarms with RF modules are required to integrate into a larger fire safety system.- Contact Alisa for inquiry：alisa@airuize.com

8.Are the alarms suitable for humid environments?

Yes, the alarms are designed to operate in relative humidity levels of up to 95% without condensation.

9.Can I mix these alarms with other brands?

No, to ensure proper interconnection, use alarms from the same brand and model series.

10.Do custom smoke detectors come with a warranty?

Yes, all custom products come with the same warranty as our standard products. We offer at least a 2-year quality warranty to ensure the product is free from defects under normal use.
