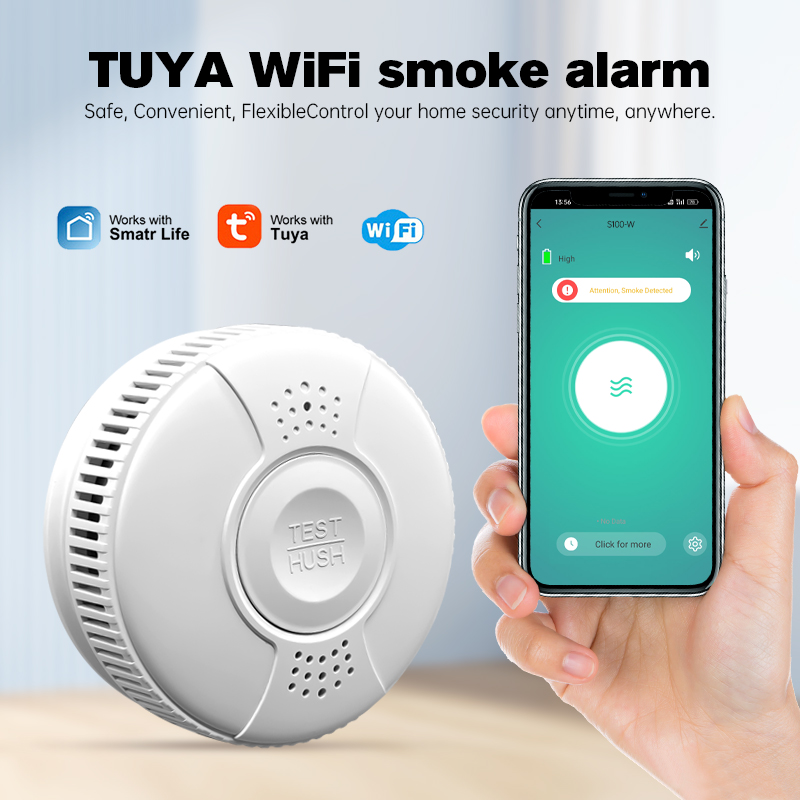

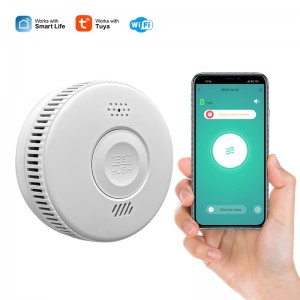

S100C-AA-W(WIFI) Internet Connected Smoke Alarm

Summarized Features:

What we provide？ – Wholesale price，OEM ODM service，Product training ect.

Get a Free Quotation Sample Request

Product Highlights

Overview

The Internet connected smoke alarm is produced by using 2 infrared sensor with unique structure design,reliable intelligent MCU, and SMT chip processing technology.

It is characterized by high sensitivity, stability and reliability, low power consumption,beauty, durability, and easy-to-use. It is suitable for smokedetection in factories, homes, stores, machine rooms, warehouses and other places.

It is not suitable for use in the following places:

Model	S100C-AA-W(WiFi)
Working voltage	DC3V
Decibel	>85dB(3m)
Alarm current	≤300mA
Static current	<20μA
Operation temperature	-10℃~55℃
Low battery	2.6 ± 0.1V (≤2.6V WiFi disconnected)
Relative Humidity	≤95%RH (40℃±2℃ Non-condensing)
Alarm LED light	Red
WiFi LED light	Blue
The failure of the two indicator lights	Does not affect the normal use of the alarm
Output form	Audible and Visual alarm
Operating frequency range	2400-2484MHz
WiFi Standard	IEEE 802.11b/g/n
Silent time	About 15 minutes
APP	Tuya / Smart Life
Battery model	AA battery
Battery capacity	About 2500mAh
Standard	EN 14604:2005, EN 14604:2005/AC:2008
Battery life	About 3 years
N.W	135g (Contains battery)

This model of Internet connected smoke alarm is same function with S100B-CR-W(WIFI) and S100A-AA-W（WIFI)

Features of internet-connected smoke alarm

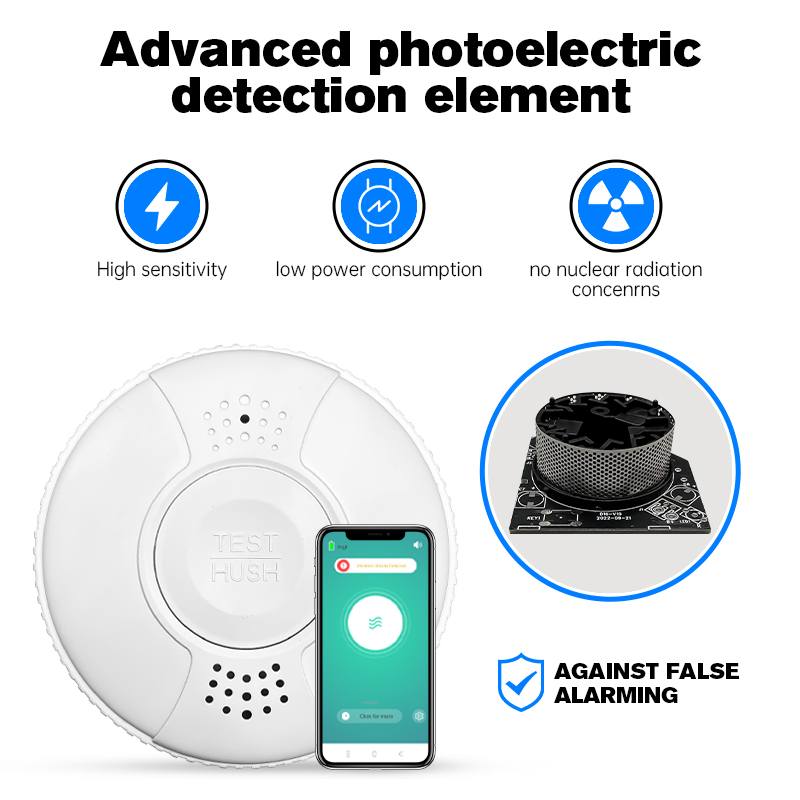

1.With advanced photoelectric detection components, high sensitivity, low power consumption, quick response recovery;

2.The dual emission technology.

Note:if you are planning to make your smoke detector meet the requirements of UL 217 9th Edition,I sugges you visit my blog.

3.Adopt MCU automatic processing technology to improve the stability of products;

4.Built-in high loudness buzzer, alarm sound transmission distance is longer;

5.Sensor failure monitoring;

6.Support TUYA APP stop alarming and TUYA APP alarm information push;

7.Automatic reset when the smoke decreases until it reaches an acceptable value again;

8.Manual mute function after alarm;

9.All around with air vents, stable and reliable;

10.Product 100% function test and aging, keep each product stable (many suppliers do not have this step);

11.Small size and easy to use;

12.Equipped with Celling mounting bracket, quick and convenient installation;

13.Low battery warning.

1.How does an Internet-connected smoke alarm improve safety?

It provides instant notifications to your phone（tuya or Smartlife app） when smoke is detected, ensuring you’re alerted even if you’re not home.

2.Is it easy to install an Internet-connected smoke alarm?

Yes, the alarm is designed for DIY installation. Just mount it on the ceiling and connect it to your home WiFi using the app.

3.What type of WiFi network does it support?

The alarm supports 2.4GHz WiFi networks, which are common in most households.

4.How do I know if the alarm is connected to the internet?

The Tuya app will display the connection status, and the alarm will notify you if it loses its internet connection.

5.How long does the battery last?

The battery typically lasts up to 3 years under normal usage.

6.Can I share the alarm’s access with other users?

Yes, the Tuya App allows you to share the alarm’s access with other users, such as family members or roommates, so they can also receive notifications and manage the device.
